Clemco 27529 6 Cubic Foot Blast Machine Packages with 1-1/4” piping 24” diameter - Manual Quantum Valve (All blast medias) - Apollo HP SaFety Gear

Classic Clemco – Tough, Reliable, Quality Blast Machines

• Semi-elliptical head for larger storage of abrasive.
• Pop-up valve umbrella (optional) relieves load pressure, when hopper is in place. Flexible pusher line guarantees air flow without pressure loss caused by elbows; and eases valve replacement.
• Chrome-plated forged brass ball valve with brass body for durability and long service life.
• Fast, safe TLR remote controls with solid brass valves built for years of dependability.
• Self-cleaning exhaust muffler greatly reduces bleed-off noise.
• 45° abrasive flow into air stream – the natural way to uniformly mix air and abrasive. Eliminates premature wear found in 90° systems.
• A tough stainless steel plate meters precisely.
• Clean-out provides access to foreign matter.
• Conical 35° bottom ensures total use of abrasive and uninterrupted abrasive flow. Heavy-gauge construction pressure vessel fabricated for rugged field service.
• Built to ASME standards. Most models registered in most Canadian provinces.
• Large 6” x 8” inspection door for easy access to inside.
• Urethane-coated pop-up valve with external sleeve for long life and fast pressurization

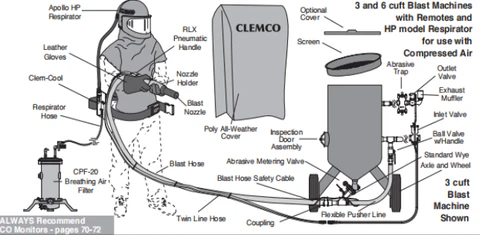

Includes

• TLR-300 remote controls (includes 10565 RLX handle) 01936
• Abrasive metering valve MQV 22845
• 50 ft. X 1-1/4” ID blast hose, coupled 23481
• NHP-2 Nylon nozzle holder (included in 23481) 04127
• CQPS-2 nylon quick coupling (included in 23481) 08413
• Blast hose safety cable 15013
• 1-1/2” Air filter with manual drain 22363
• TXP-6 blast nozzle 23525
• Blast machine screen (optional steel cover) 03099 (02335)
• Poly all-weather cover 15097
• Nylon tie (eight included with system) 02195 (each)
• Apollo 600 HP DLX helmet with Clem-Cool 25194
• 50 ft respirator hose 04415
• CPF-20 Breathing air filter with regulator 03578
• One pair leather gloves 02243
• One 25-pack helmet outer lens 04361
• One 5-pack Apollo 600 intermediate lens 24943
• Two 10-packs quick coupling gaskets 08853 & 00850
• One 10-pack nozzle washers 91026
• Abrasive trap screens (six included in system) 02012 (each)

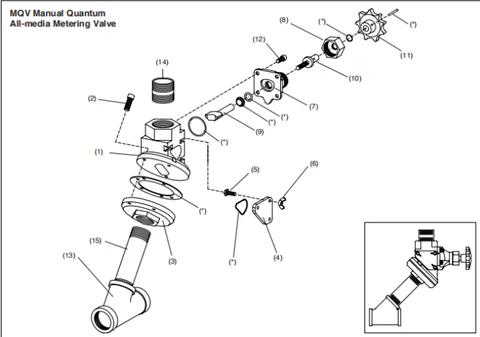

The Manual Quantum valve handles all types of media; minerals, slags, and metallic. Its design allows for precise metering and easy maintenance. The Quantum fits machines from 2-cubic feet to 20-cubic feet capacity.

MQV Manual Metering valve complete ....................22845

(*)Service Kit Quantum Metering segment .......22854
(see * on drawing)
1. Adaptor flange w/insert........................21314
2. Screw, 3/8-NC x 1” socket head ...........22655
3. Lower body..................22621 57.00
4. Inspection plate...........22620 20.50
5. Screw, 1/4-NC x 3/4” hex head cap, .............03052
6. Wing nut, 1/4-NC ........03113
7. Housing, knob .............22761
8. Nut, knob housing.......22762
9. Metering plate and shaft................22763
10. Metering screw............22764
11. Knob, adjustment ........22766
12. Screw, 5/16-NC x 3/4” socket head ...........22767
13. Wye, 1-1/4”..................01818
14. Nipple,1-1/2” x 2” ......01840
15. Nipple, 1-1/4” x 5-1/2”........................01874 1
(-) Conversion kit:  Quantum rack & pinion to knob ............ 22841
